200-1500 kg/h wet type floating fish feed pellet processing machine

1. This machine is applicable to frog farmers, fish farmer, pet feed farmer, small and medium feed mill factory, and research institution.
2. It is used to produce aquatic feed.

The pellet can float over the water for 1-2hours, thus keeper can observe fish-eating situations;

2) Also the pellet is high-temperature puffing extruded, so the bacteria will be killed, which will keep the feed healthy and easy to digest.

3) Cheap cost, high efficiency, small occupied area, easy to operate and maintenance

4) The machine is only puffing extruder part, if you need frame and motor, we also can provide you. But recommend buying motor locally, easy to maintain and fix.

Weight: 420 kg
Brand Name: LIMA
Voltage: 220V/380V
Pellet diameter: 0.9-12mm
Type: Feed Pellet Machine
Dimension(L*W*H): 1600*1400*1350mm

Brand Name: LIMA
Weight: 350 kg
Max. Capacity: 800 kg/h
Voltage: 380V, 50HZ, 3Phase
Core Components: Bearing, Engine
Dimension(L*W*H): 620*280*750mm

The small and medium-sized feed machine is formed by extruding the mixed powdered feed once. It does not need to add water during the granulation process, and does not need to be dried. After natural heating up to about 80 degrees, the starch can be gelatinized and the internal granules are matured deeply. Smooth surface, high hardness, long-term storage, ideal for raising rabbits, fish, chicken, pigs, sheep, cattle and small and medium-sized feed processing plants

Weight: 3800 kg
Cutting Power: 3.0kw
Feeding Power: 2.2kw
Diesel horse power: 90kw
Brand Name: LIMA MACHIENRY
Dimension(L*W*H): 6600*2800*2330

Weight: 3800 kg
Voltage: 220V/380V
Installed Power: 90kw
Input Voltage: 380V/50Hz
Dimension(L*W*H): 6600*2800*2330MM

animal feed pellet production line is used to press raw materials into pellets.The raw mateirals can be
corn,wheat,grain,wheat,etc.The processing is included crusher-mixer-conveyor-pellet machine-cooler.This small animal feed pellet production line is widely used in large,medium and small scale aquaculture,livestock farms and grain feed processing plants. Which is convenient for assemble and maintenance.

The pellet feed machine is specially designed for breeding professional households and their small farms, and can produce feeds such as pigs, cattle, sheep, rabbits, chickens, ducks and fish. The surface of the granules is smooth and clean, the hardness is moderate, dry and dry, easy to seal and store.

Pet dog food making machine is used for processing for dogs and cats(pet food), birds, piglets, frogs, sinking and floating aquatic feeds for fish. Which is high and new technical program as to catch the developing pet food market. Pet food line mainly use corn powder, bone powder, meat powder and some food additive as main raw material, through mixing, ectruding, roasting, flavoring to get the final nutritious pet food, and the machine can also make the pet food cored filling, it will be more popular with mordern pets.

With the development of the society, acquaculture feed gradually attracts people’s eyes. So acquaculture feed is a big market and many people wants to produce it.
Meeting with the demand of the market, Dongxuya developes multiple model aquaculture feed processing lines. According different output, the processing lines have different configurations. By adjusting technological parameters of material, temperature and moisture, our process equipment can make the products shape creative, taste special, nutrition rich and the texture meticulous to meet pets different tastes. The processing line is broadly used into all kinds of pets’ food production, such as dog, cat, fish, fox, bird, etc, becaming the ideal choice of many manufacturers.

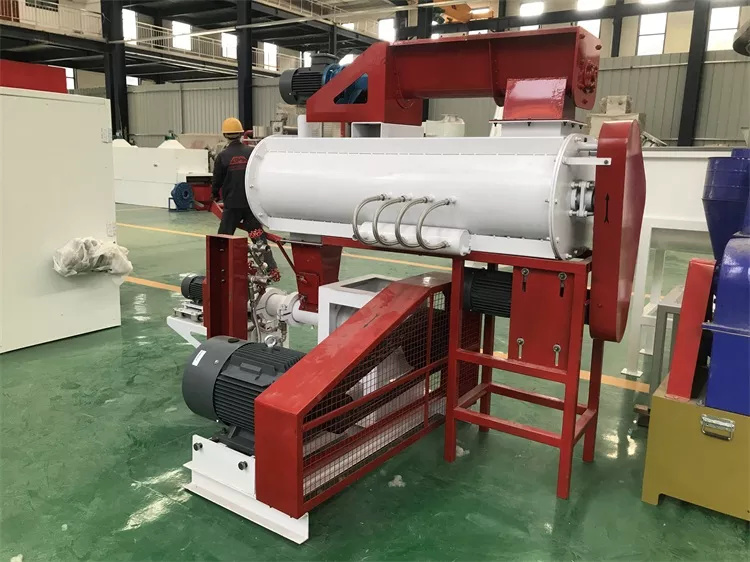

LIMA wet type fish feed machine uses corn, soybean (bean cake) animal wastes as raw materials, can be expanded to produce different particle shapes, suitable for different pet tastes such as dogs, cats, fish, birds, rabbits, shrimps, dogs, cats, etc.

There is no need to heat outside the machine, through the screw extruding of the raw material, heat is produced and gathered during the rotary working process in the airtight environment, and during the high-temperature ripening process, the starch and fiber of the raw material become swell. Then under the pressure-tight condition, the material will be formed into pellets by shaping mold. In the end, through the high pressure produced by the regular rotating of the screw, after being cut by the forepart cutter which rotates regularly and high-speedily, the finished products will be shrunk and become small average puffed balls in room temperature and pressure.

with the development of fish food machine, our Fish Feed Food Extruder Manufacturing Machine Plant has continuously improved for adjusting mounting demand of market. In this occasion, we can produce fish feed pellet food with high nutrition and vitamin for fish.

Weight: 1000 kg
Motor: 30KW
Voltage: 220V/380V
Brand Name: LIMA
Capacity: 400-450kg/h
Dimension(L*W*H): 2650*1450*1750mm

LIMA has a large capacity fish feed machine which is named wet type fish feed machine.

The feed granule machine is a small and medium-sized pellet feed processing equipment specially designed for rural breeding professional households and small farms and rabbit breeding plants. And can process grass, straw particles and inorganic fertilizer particles.

Small Animal Pet Catfish Shrimp Food Feed Meal Making Extruder Floating/ Sinking Fish Feed Pellet Production Machine mainly proper for frog, aquatic, ornamental fish, pet feed farmers, pet feed, fish farmers, Small and Medium feed factory, institutes of scientific research and so on.
The raw materials can be wheat, soybean, cake, and other leftovers, etc. Its main work principle is changing mechanical energy into heat energy to extrude materia

Model: LM60 -LM200
Capacity (kg/h): 180-4000kg/h
Pellet Size: 0.8-12mm
Main power (kw): 15-132kw
Feeder power (kw): 0.4-2.2kw
Screw Diameter (mm): Φ60 -200
Cutter power (kw): 0.4-3.0kw
Weight (kg): 480-4500kg

1. It is widely used for producing high-grade aquatic feed pellets for fish, catfish, shrimps, crab, etc.

2. The final feed pellets have a unique shape and good taste, high nutrition, and smooth textures.

3. The pellets floating time on the water surface can be adjusted by the extrusion degree.

4. Currently, floating fish feed extruder has become ideal equipment for small and medium fish farms (catfish, tilapia, shrimp, etc) holders or fish feed processing plants.

The pellet feed machine is specially designed for breeding professional households and their small farms, and can produce feeds such as pigs, cattle, sheep, rabbits, chickens, ducks and fish. The surface of the granules is smooth and clean, the hardness is moderate, dry and dry, easy to seal and store.

Weight: 940kg
Motor: 18.5KW
Voltage: 220V/380V
Cutting power: 0.75kw
Capacity: 300-350kg/h
Type: Feed Pellet Machine
Dimension(L*W*H): 2460*1550*1740MM

1. This machine is applicable to frog farmers, fish farmer, pet feed farmer, small and medium feed mill factory, and research institution.
2. It is used to produce aquatic feed.

Aquatic feed fish foods have expanded out of soft, medium, high protein, complete nutrients, floating to the surface for a long?time and no waste feed, and add trace elements, can promote the rapid growth of fish, is the ideal choice for comparison of different?manufacturers

This Floating feed extruder for pet feed Making Machine is widely used for producing maize flour, soybean flour or compound powder, wheat bran into high grade aquatic feed pellets for fish, catfish, shrimps, dog,cat etc.

Weight: 4500 kg
Capacity: 3-5t/h
Warranty: 1 year
pellet size: 1.5-10mm
Voltage: 380/220V 50hz
Dimension(L*W*H): 6600*2900*2350mm

Fish feed making machine is also named fish feed extruder, and it is used for processing for dogs and cats (pet food), birds, piglets, frogs, sinking and floating aquatic feeds for fish. Which is high and new technical program as to catch the developing pet food market. CE certificate best price floating aquarium fish feed pellet food making machine mainly use maize, fish powder, meat powder and some food additive as main raw material, through mixing, extruding, roasting, flavoring to get the final puffed pet food.
This line is fully automatic, high capacity and with different of shapes. It can produce such as cat food, dog food, fish food, bird food and so on.

Motor: 37KW
Weight: 2000 kg
Brand Name: Lima
Voltage: 220V/380V
Feeding power: 1.1kw
Cutting power: 1.5kw
Capacity: 500-600kg/h
Dimension(L*W*H): 2600*2100*1900 MM

Dog food granulation machine can be used to produce dog food, cat food, meanwhile it can produce fish pellets; the pellets size can be from 1.5mm to 15mm by adjusting the molds from extruder.
For pet food, our machine can produces pet food of round stick, star shape, triangle shape, circle shape, heart shape, bone shape, moon shape, etc.

Floating Fish feed pellet machine using for aquaculture and animal husbandry. For example: catfish¡¢Tilapia fish ¡¢dog¡¢tortoises¡¢frogs and so on. Just change mould can make many different shape and size. The output pellet can floating on water within 12Hours not sink and not dispersing . Not sink and not dispersing keep water clearly no polluting. After puffed feed pellet through high temperature will killing such as Escherichia coli and Salmonella, not only keep fish eat health food, also keep fish easy to eat and digest, make your fish growing fast. Can make different size from 1mm-12mm , can feed from baby fish to big fish, Can using motor and diesel according to your requested, Easy to operate and learning .We have semi-automatic and automatic from 50kg/h-8T/h output for your choice.
