30-700 kg/h Electric Engine Floating Fish Feed Pellet Machine

China 2021 motor type fish feed extruder ,it can also kill pathogenic microorganisms and parasites, and ensure the quality of feed. It can be used to raise rabbits, chickens, ducks, geese, fish, pigs, aquatic products, etc. Based on the principle of circular motion, the template and pressure roller are specially treated with high-quality alloy steel. The spindle and flat die drive the pressure roller under the action of friction force. The material is gelatinized at high temperature between the pressure roller and the template, and the protein is coagulated and denatured. The pressure roller is discharged from the die hole under the extrusion, and the prepared granules are sent out of the machine through the tray, and the length of the granules can be adjusted through the slit, which is a model for reducing the breeding cost and improving the economic benefit of the farm and the professional households.

Feed granule machine (also known as: granule feed machine, feed granule machine, granule feed molding machine), belongs to the feed granule equipment. It is a feed processing machine with corn, soybean meal, straw, grass and rice husk as raw materials and directly pressed into granules after grinding raw materials.

One of the best sellers of the LIMA floating fish feed pellet machine line. This mini floating fish feed machine line is suitable for the farm’s own use and also suitable for the business of producing fish feed for sale. Mini floating fish feed making machine line including crusher, mixer, fish feed making machine, dryer and the seasoning barrel. Among them, grinder, mixer and fish feed pellet machine are necessary, and customers can decide whether to buy dryers and seasoning barrels according to their own needs.

Model: LM-70
Weight: 600kg
Capacity: 180-200kg/h
Feeding Power: 0.4KW
Cutting Power: 0.75KW
Screw Diameter: 70mm
Main Shaft Power: 18.5KW
Machine Size: 1650*1400*1300mm

Weight: 950 kg
Voltage: 220V/380V
Installed Power: 10/35/46/90kw
Brand Name: LIMA MACHINERY
Dimension(L*W*H): 2100*1450*1350

This Floating feed extruder for pet feed Making Machine is widely used for producing maize flour, soybean flour or compound powder, wheat bran into high-grade aquatic feed pellets for fish, catfish, shrimps, dog,.cat, etc. The puffing feed extruder for pet feeds can float on the water surface for over12 hours without water pollution.

Lima small electric fish feed extruder machine has a good sale in the fish farmers and used for business.
For one type fish feed machine-wet type fish feed machine,it has a pressure conditioner to improve the pellet properties and nutritive effects.

China 2021 motor type fish feed extruder ,it can also kill pathogenic microorganisms and parasites, and ensure the quality of feed. It can be used to raise rabbits, chickens, ducks, geese, fish, pigs, aquatic products, etc. Based on the principle of circular motion, the template and pressure roller are specially treated with high-quality alloy steel. The spindle and flat die drive the pressure roller under the action of friction force. The material is gelatinized at high temperature between the pressure roller and the template, and the protein is coagulated and denatured. The pressure roller is discharged from the die hole under the extrusion, and the prepared granules are sent out of the machine through the tray, and the length of the granules can be adjusted through the slit, which is a model for reducing the breeding cost and improving the economic benefit of the farm and the professional households.

Weight: 220 kg
Motor: 5.5KW
Brand Name: LIMA
Cutting power: 0.4kw
Core Components: Motor
Dimension(L*W*H): 550X220X210 cm

Capacity (kg/h): 40-800kg/h
Finished Pellet: 1.5mm – 10mm
Main Raw Materials: corn meal, wheat bran, soybean meal, rapeseed meal, and so on
Application: Production of Catfish Feed, Tilapia Feed, Tropical Fish Feed, Shrimp Feed, Cat Food, Dog Food, etc.

This is the smallest capacity floating fish feed machine in LIMA Feed Machinery Manufacture.It is suitable for the fish farmer who just want to use it for their own farm.The floating fish feed machine can make floating feed pellets for all kinds of fishes, like tilapia, catfish, etc.
The power of this mini floating fish feed machine is electricity,and the capacity is 40-60kg per hour.

Warranty: 1 Year
Capacity: 500kg/h
Voltage: 220V/380V
Brand Name: LIMA
Dimension(L*W*H): 2400*1950*1600mm

This floating fish feed making machine line capacity is 1-2 ton per hour, including crusher, mixer, dryer, season machine, cooler, conveyors and air transport system. Such a large production line only needs two to three people to fully operate, which is very suitable for large feed manufacturers. Of course, LIMA can also customize the production line plan according to the size of your plant, and provide you with the most suitable production line plan for you

The pellet feed machine is specially designed for breeding professional households and their small farms, and can produce feeds such as pigs, cattle, sheep, rabbits, chickens, ducks and fish. The surface of the granules is smooth and clean, the hardness is moderate, dry and dry, easy to seal and store.

The small and medium-sized feed machine is formed by extruding the mixed powdered feed once. It does not need to add water during the granulation process, and does not need to be dried. After natural heating up to about 80 degrees, the starch can be gelatinized and the internal granules are matured deeply. Smooth surface, high hardness, long-term storage, ideal for raising rabbits, fish, chicken, pigs, sheep, cattle and small and medium-sized feed processing plants

Weight: 280 kg
Warranty: 1 Year
Brand Name: LIMA
Type: Feed Pellet Machine
Dimension(L*W*H): 1500*1400*1250

Animal feed particle machine made the feed pellet by corn, bean pulp, straw, grass, and rice husk. Used for aquaculture, poultry feed making plant, stock farm, poultry farm, etc.

If you have a fish farm, you can come to see the fish feed machine in LIMA Machinery. Aquatic animals have short digestive tract, and their digestive enzyme activity is low, so their digestibility is lower than that of the terrestrial animals.

Widely used in family and small scale farm,the compressed feed pellet is good fooder for poultry and livestock,such as chicken,pig,cattle,sheep,rabbit etc with Small scaled animal feed pellet making machine

Brand Name: LIMA
Model: LM-40/60/80
Input Voltage: 380V/50Hz
Weight: Around 150-200kg
Power: 5.5kw/22kw/36kw
Dimension(L*W*H): 0.79×1.1×0.9m
Warranty of core components: 1 Year

LIMA fish feed making machine is widely used in fish farmers and commercial production, and is deeply loved by customers. The capacity of LIMA’s floating fish feed machine ranges from 40kg-1 ton per hour, which can meet the needs of customers. And each floating fish feed machine is equipped with five different types of fish feed molds, from 1mm-5mm, only need to change the mold of the machine to realize the production of fish feed of different sizes

This Floating feed extruder for pet feed Making Machine is widely used for producing maize flour, soybean flour or compound powder, wheat bran into high grade aquatic feed pellets for fish, catfish, shrimps, dog,cat etc.

Weight: 450 kg
Motor: 5.5KW
Voltage: 220V/380V
cutting power: 0.4kw
Capacity:1000kg/hour
Type: Feed Pellet Machine
Dimension(L*W*H): 550X220X210 cm

1. It is widely used for producing high-grade aquatic feed pellets for fish, catfish, shrimps, crab, etc.

2. The final feed pellets have a unique shape and good taste, high nutrition, and smooth textures.

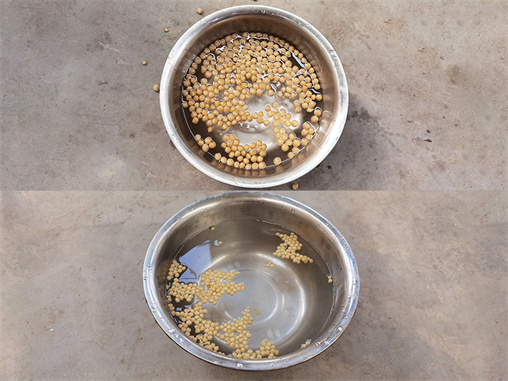

3. The pellets floating time on the water surface can be adjusted by the extrusion degree.

4. Currently, floating fish feed extruder has become ideal equipment for small and medium fish farms (catfish, tilapia, shrimp, etc) holders or fish feed processing plants.

Basically, LIMA has two types of machines for fish food production: dry type fish feed machines and wet type fish feed machine.
Fish food is made by extruding the mixed material through the holes on a metal mould.

There is no need to heat outside the machine, through the screw extruding of the raw material, heat is produced and gathered during the rotary working process in the airtight environment, and during the high-temperature ripening process, the starch and fiber of the raw material become swell. Then under the pressure-tight condition, the material will be formed into pellets by shaping mold. In the end, through the high pressure produced by the regular rotating of the screw, after being cut by the forepart cutter which rotates regularly and high-speedily, the finished products will be shrunk and become small average puffed balls in room temperature and pressure.

Fish feed machine is suitable to make dry and wet type fish food pellet (catfish, aquarium, Tilapia, Freshwater fish and tropical fish etc.)

Application:Animal Feed
Keywords: floating fish feed extruder machine
Capacity: 30-40kg/h
Voltage: 220V/380V
Key words:Fish Floating Food Pellet Machine
Motor:5.5KW
Feeding power:0.4kw
cutting power:0.4kw

A simple method for beginners: use cornflour, water, and others for the test machine! Viscosity, dry humidity are just right. It is critical to prepare soft materials in extrusion granulation. Judgment method: making soft materials is a key step in granulation.by extrusion. “Press lightly to disperse” or “grip into a group, lightly press to disperse”.
A common problem of granulation: crushing is not fine enough (you can pass a fine sieve!!!) The soft material is too dry (continue to add water) Soft material is too sticky .

The LIMA fish feed pelletizer machine has wide application scope, strong applicability, adjustable temperature and pressure,extrude all kinds of single materials, rags and crushed materials.
